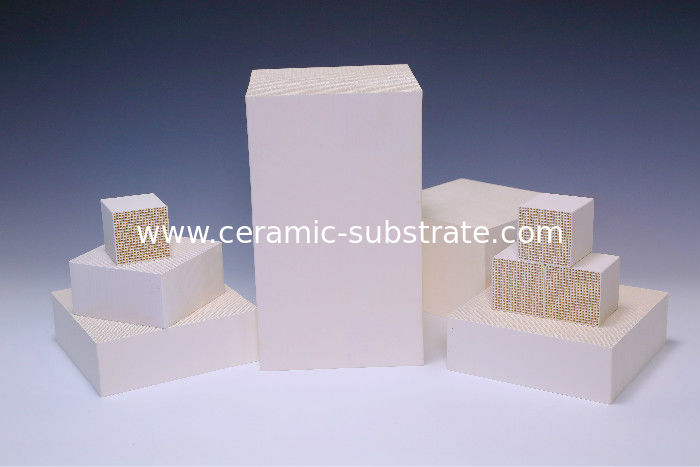

White And Cellular Monolithic Catalyst Support , VOC alumina carrier

White And Cellular Monolithic Catalyst Support , VOC alumina carrier

  • हाई लाइट

    ceramic catalyst support

    ,

    Ceramic catalyst carrier

  • Cells Density
    100-400 CPSI
  • Material
    Cordierite
  • Size
    Customize
  • Color
    White
  • Name
    ceramic catalyst support
  • Shape
    Round
  • Place of Origin
    China.Yixing
  • ब्रांड नाम
    Yuxing
  • प्रमाणन
    ISO9001 TS/16949
  • Minimum Order Quantity
    NO
  • Packaging Details
    Standard export packing
  • Delivery Time
    5 work days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    6 million liter/year

White And Cellular Monolithic Catalyst Support , VOC alumina carrier

VOC Honeycomb Catalytic Converter Substrate White And Cellular





Applications:



After coated with catalyst, the product is widely applied in organic waste gas purification, heat exchange system industrial waste gas treatment, coal-fired power plant flue gas purification, NOx purification system, garbage incineration and harmful gas purification treatment, etc.





REMARK: The SIZE can be designed by customer





1.Product use

After coated with catalyst, the product is widely applied in organic waste gas purification, heat exchange system industrial waste gas treatment, coal-fired power plant flue gas purification, NOx purification system, garbage incineration and harmful gas purification treatment, etc.



3.Overall dimensions standards

Item



Standard values

Allowance

Remark

boundary dimension

length

150MM

±1.5MM



width

150MM

±1.5MM



height

50-100MM

±1.0MM



101-300MM

±1%MM*height



verticality

height

50-100MM

≤1MM



101-300MM

≤1%Height



parallelism

height

50-100MM

≤1MM



101-300MM

≤1%height





Item

Standard

values



Test

methodS



chemical component



Al2O3

35.2%±1%

Chemical titration

 analysis

SiO2

50.9%±1%

MgO

13.9%±1%

Cordierite main crystalline

 phase content

≥90%

X-ray diffraction

RT Mpa

AAxis

≥15 Mpa

universal material

testing machine

BBxis

≥2 Mpa

water absorption

23%-27%

Gravimetric method

softening temperature

≥1320℃

high-temperature electric resistance furnace

CET(800℃)

≤1.6*10-6/℃

thermal

dilatometer





Description:



After coated with catalyst, the product is widely applied in organic waste gas purification, heat exchange system industrial waste gas treatment, coal-fired power plant flue gas purification, NOx purification system, garbage incineration and harmful gas purification treatment, etc.

Benefits of Products:

● Large Surface Area

● Low thermal expansion coefficient

● Good thermal shock and thermal shock performance

● Good corrosion resistant performance





Competitive Advantage:



● Large Surface Area

● Low thermal expansion coefficient

● Good thermal shock and thermal shock performance

● Good corrosion resistant performance
