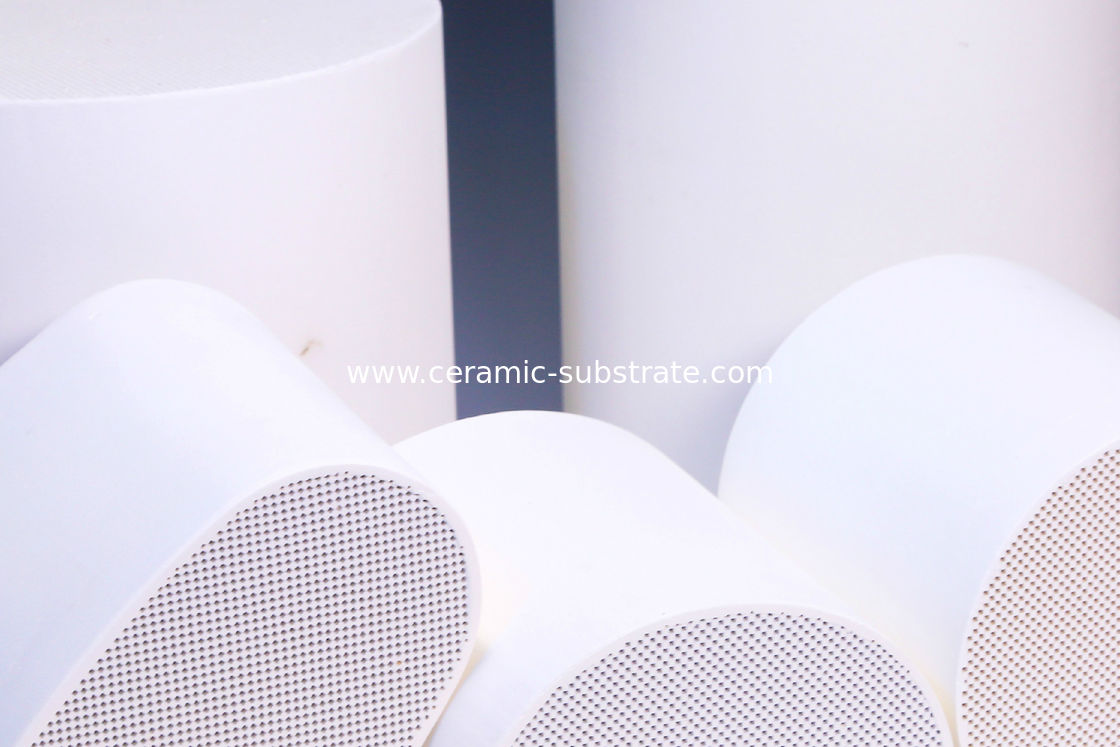

Wall Flow Diesel Particulate Filter , Ceramic Substrates / catalytic support

Wall Flow Diesel Particulate Filter , Ceramic Substrates / catalytic support

  • हाई लाइट

    dpf diesel particulate filter

    ,

    ceramic disc filter

  • cells density
    100 - 200 CPSI
  • Material
    Cordierite
  • Size
    Customize
  • Color
    White
  • Name
    catalyst substrates|cordierite substrate|ceramic honeycomb
  • shape
    Round
  • usage
    car catalytic converter
  • Place of Origin
    China.Yixing
  • ब्रांड नाम
    Yuxing
  • प्रमाणन
    ISO9001 TS/16949
  • Minimum Order Quantity
    NO
  • Packaging Details
    Standard export packing
  • Delivery Time
    5 work days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    6 million liter/year

Wall Flow Diesel Particulate Filter , Ceramic Substrates / catalytic support

Ceramic Substrates For Wall Flow Diesel Particulate Filter



2.   Product use



This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.



Overall dimensions standards



Item



Standard  value

Test methods

Wall thinkness

100CPSI

0.46MM±0.04

vernier caliper

200CPSI

0.36MM±0.04

vernier caliper

Overall

dimensions

OD:<120MM

±1.0MM

vernier caliper

            ≥120MM

±1%

vernier caliper

Height:<150

±1.0

vernier caliper

             ≥150

±1%height

vernier caliper

hole

density

(Holes /inch2)

100CSI

100±10

vernier caliper

200CSI

200±10

vernier caliper

Hole sealing integrity

100% intact

Bright light perspective

internal crack





Bright light perspective



Physical and chemical properties



Item

Standard value

Test methods

chemical

component



Al2O3

35.4%±1.5%

chemical analysis

SiO2

50.9%±1.5%

MgO

13.5%±1.5%

RT Mpa

≥10.0Mpa

universal material

testing machine



porosity

≥50%

Gravimetric method

Max. working temperature

1400℃

high-temperature electric resistance furnace

CET(800℃)

≤1.2*10-6/℃

thermal dilatometer

The average pore aperture

7~15

Mercury Injection

Apparatus





Description:



This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.

Benefits of Products:

●High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

●High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

●The pressure drop is small

●High filtration efficiency, able to adapt to all kinds of regeneration

● Low thermal expansion coefficient





Applications:



This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.





Specifications



  Cell density (CPSI):100 and 200



Item

(mm)

Sectional Dimension

(mm2)

Area of Section



Shape of Section

(mm)

Height

1

118.4(4.66”)

11010

Wall Flow Diesel Particulate Filter , Ceramic Substrates / catalytic support 0



The height can be designed by customer

2

127(5”)

12667

Wall Flow Diesel Particulate Filter , Ceramic Substrates / catalytic support 1

3

144(5.66”)

16286

Wall Flow Diesel Particulate Filter , Ceramic Substrates / catalytic support 2

4

150(5.9”)

17671

Wall Flow Diesel Particulate Filter , Ceramic Substrates / catalytic support 3

5

190(7.5”)

28352

Wall Flow Diesel Particulate Filter , Ceramic Substrates / catalytic support 4

6

228(9”)

40828

Wall Flow Diesel Particulate Filter , Ceramic Substrates / catalytic support 5

7

240(9.5”)

45238

Wall Flow Diesel Particulate Filter , Ceramic Substrates / catalytic support 6

8

267(10.5”)

55990

Wall Flow Diesel Particulate Filter , Ceramic Substrates / catalytic support 7

9

286(11.25”)

64242

Wall Flow Diesel Particulate Filter , Ceramic Substrates / catalytic support 8

10

305(12”)

73061

Wall Flow Diesel Particulate Filter , Ceramic Substrates / catalytic support 9

11

330(13”)

85529

Wall Flow Diesel Particulate Filter , Ceramic Substrates / catalytic support 10

12

381(15”)

114009.00

Wall Flow Diesel Particulate Filter , Ceramic Substrates / catalytic support 11

13

457(18”)

164029.00

Wall Flow Diesel Particulate Filter , Ceramic Substrates / catalytic support 12

14

144.8x81.3

9921.16

Wall Flow Diesel Particulate Filter , Ceramic Substrates / catalytic support 13

15

144x116

13366.67

Wall Flow Diesel Particulate Filter , Ceramic Substrates / catalytic support 14

16

188x103

16338

Wall Flow Diesel Particulate Filter , Ceramic Substrates / catalytic support 15

17

Trapezium 130x100

10530

Wall Flow Diesel Particulate Filter , Ceramic Substrates / catalytic support 16

18

203.3x97

17059

Wall Flow Diesel Particulate Filter , Ceramic Substrates / catalytic support 17

19

191.8×95.8

14698

Wall Flow Diesel Particulate Filter , Ceramic Substrates / catalytic support 18

20

190×134

22160

Wall Flow Diesel Particulate Filter , Ceramic Substrates / catalytic support 19

21

145×118

14120

Wall Flow Diesel Particulate Filter , Ceramic Substrates / catalytic support 20

22

154.9×127

15771.65

Wall Flow Diesel Particulate Filter , Ceramic Substrates / catalytic support 21

23

207.3×101.4

17753.25

Wall Flow Diesel Particulate Filter , Ceramic Substrates / catalytic support 22

24

207.4x100.4

17920

Wall Flow Diesel Particulate Filter , Ceramic Substrates / catalytic support 23





REMARK: The SIZE can be designed by customer





Competitive Advantage:



●High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

●High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

●The pressure drop is small

●High filtration efficiency, able to adapt to all kinds of regeneration

● Low thermal expansion coefficient
