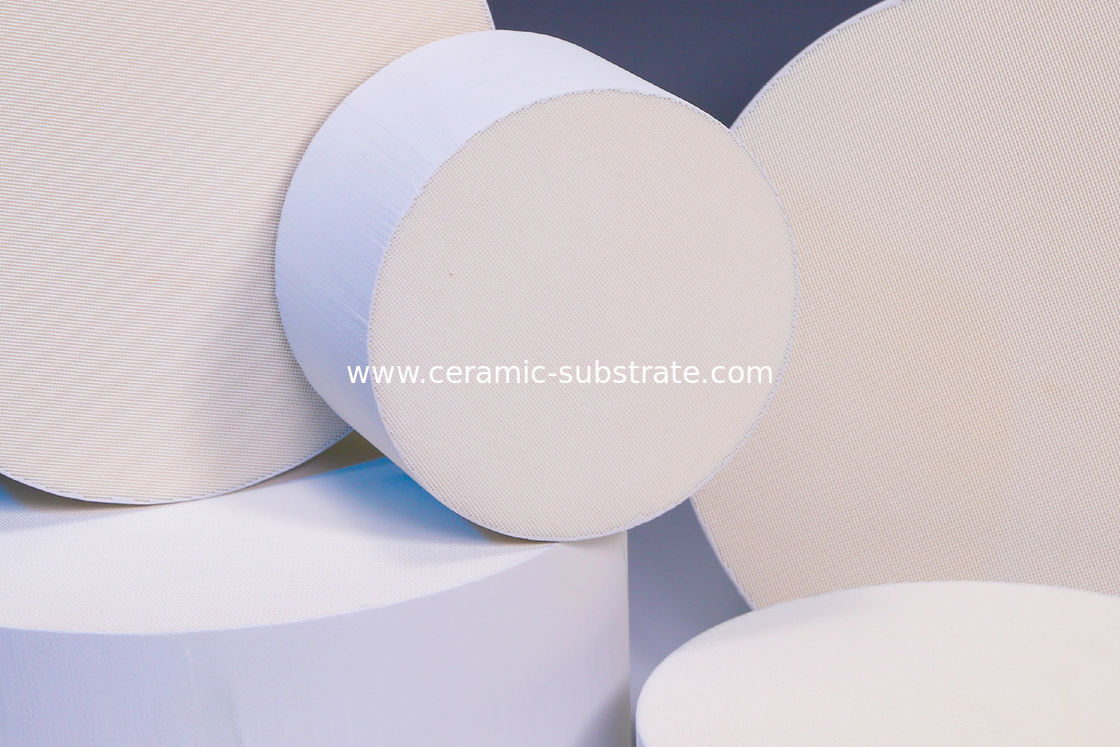

400CPSI Alumina Ceramic Substrate , DOC Ceramic Substrates For Auto

400CPSI Alumina Ceramic Substrate , DOC Ceramic Substrates For Auto

  • हाई लाइट

    alumina ceramic substrates

    ,

    alumina ceramic substrate

  • cells density
    100-400 CPSI
  • Material
    Cordierite
  • Size
    Customize
  • Color
    White
  • Name
    catalyst substrates|cellular ceramic|ceramic honeycomb
  • shape
    Round
  • usage
    car catalytic converter
  • Place of Origin
    China.Yixing
  • ब्रांड नाम
    Yuxing
  • प्रमाणन
    ISO9001 TS/16949
  • Minimum Order Quantity
    NO
  • Packaging Details
    Standard export packing
  • Delivery Time
    5 work days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    6million liter/year

400CPSI Alumina Ceramic Substrate , DOC Ceramic Substrates For Auto


400CPSI Alumina Ceramic Substrate , DOC Ceramic Substrates For Auto





1. Product use



After coated with catalysts, this product is applied in catalytic converter of diesel vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V. Technical performance of the product in the leading position in domestic, close to or reach the advanced level of similar foreign products.



2. Overall dimensions standards



Item



Standard values



Test method



Wall thinkness

100CPSI

0.45MM±0.03

vernier caliper

200CPSI

0.36MM±0.03

vernier caliper

300CPSI

0.28MM±0.03

vernier caliper

400CPSI

0.21MM ±0.03

vernier caliper

Overall dimensions

OD:<100MM

±1.0MM

vernier caliper

            ≥100MM

±1%

vernier caliper

Height:<150

±1.0

vernier caliper

       ≥150

±1%Height

vernier caliper

Internal crack





Bright light perspective



Physical and chemical properties



Item

Standard value

Test methods

chemical

component



Al2O3

35.2%±1%

chemical

analysis

SiO2

50.9%±1%

MgO

13.9%±1%

Cordierite main crystalline phase content

≥90%

X-ray diffraction

Compressive

strength at

room

temperature



AA xis

≥15Mpa

universal material

 testing machine



BB xis

≥2Mpa

CC xis

≥0.15Mpa

water absorption

23-27%

Gravimetric method

softening temperature

 ≥1400℃

high-temperature electric resistance furnace

CTE(800℃)

≤1.5*10-6/℃

thermal dilatometer

thermal shock

resistance

450℃

Three times don't crack

air cooling





Description:



After coated with catalysts, this product is applied in catalytic converter of diesel vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V. Technical performance of the product in the leading position in domestic, close to or reach the advanced level of similar foreign products.



Benefits of Products:



   ● Low thermal expansion coefficient

   ● High porosity of hole on the wall , good liquidity and uniform distribution

   ● High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

   ●The pressure drop is small.

   ● Cold start performance is good, low light-off temperature, high conversion efficiency





Applications:



After coated with catalysts, this product is applied in catalytic converter of gasoline vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V. Technical performance of this product has achieved advanced level in China, and it approaches or has already reached the advanced level of similar products abroad.





Specifications



 Cell density (CPSI):100~400



Item

(mm)

Sectional Dimension

(mm2)

Area of Section



Shape of Section

(mm)

Height

1

144(4.66”)

16282

400CPSI Alumina Ceramic Substrate , DOC Ceramic Substrates For Auto 0



The height can be designed by customer.

(The standard height):76.2mm(3”), 101.6mm(4”), 127mm(5”),

152.4mm(6”).

2

150

17671

400CPSI Alumina Ceramic Substrate , DOC Ceramic Substrates For Auto 1

3

165(6.5”)

21382

400CPSI Alumina Ceramic Substrate , DOC Ceramic Substrates For Auto 2

4

170

22698

400CPSI Alumina Ceramic Substrate , DOC Ceramic Substrates For Auto 3

5

175

24052

400CPSI Alumina Ceramic Substrate , DOC Ceramic Substrates For Auto 4

6

190(7.5”)

28352

400CPSI Alumina Ceramic Substrate , DOC Ceramic Substrates For Auto 5

7

210

34636

400CPSI Alumina Ceramic Substrate , DOC Ceramic Substrates For Auto 6

8

228(9”)

40828

400CPSI Alumina Ceramic Substrate , DOC Ceramic Substrates For Auto 7

9

240(9.5”)

45238

400CPSI Alumina Ceramic Substrate , DOC Ceramic Substrates For Auto 8

10

267(10.5”)

55990

400CPSI Alumina Ceramic Substrate , DOC Ceramic Substrates For Auto 9

11

286(11.25”)

64242

400CPSI Alumina Ceramic Substrate , DOC Ceramic Substrates For Auto 10

12

305(12”)

73061

400CPSI Alumina Ceramic Substrate , DOC Ceramic Substrates For Auto 11

13

330(13”)

85529

400CPSI Alumina Ceramic Substrate , DOC Ceramic Substrates For Auto 12






REMARK: The SIZE can be designed by customer





Competitive Advantage:



  ● Low thermal expansion coefficient

  ● High porosity of hole on the wall , good liquidity and uniform distribution

  ● High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

  ●The pressure drop is small.

  ● Cold start performance is good, low light-off temperature, high conversion efficiency
